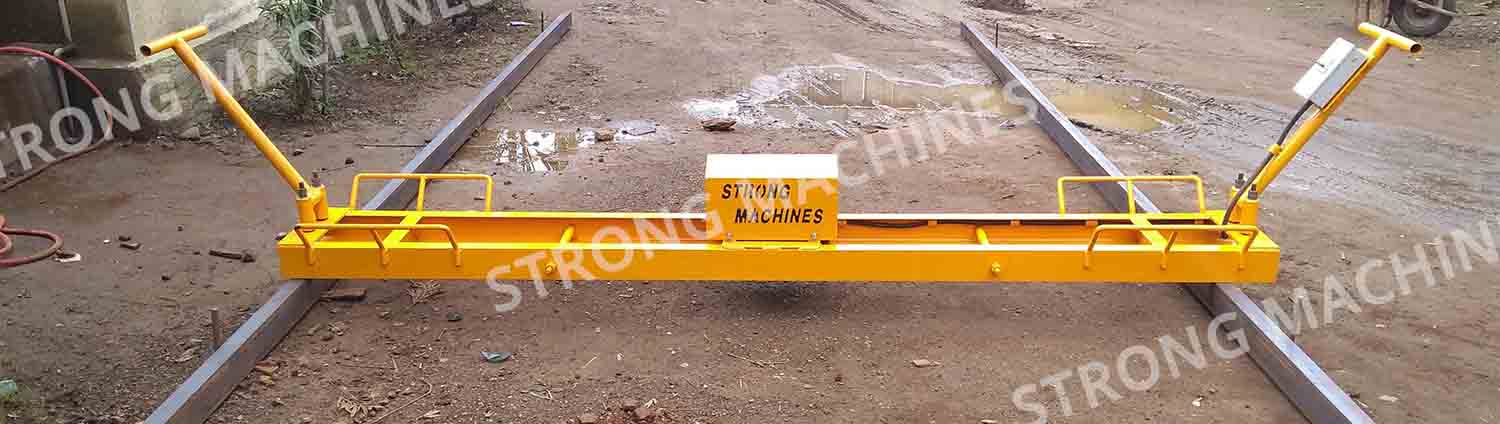

Concrete Screed Paver

PRODUCT SPECIFICATION

Since 1987 we have shipped thousands of STRONG mixers, many with optional equipment, to producers of concrete products around the world. It combines the advantages of simplicity, ruggedness and exceptional service life. That translates into excellent value. Continuous development and enhancement has made it a fully mature machine, ideally suited for a wide range of mixing tasks.

LENGTH

Clear working width available from 2 mtr — 6 mtr

CYLINDERICAL FINISHING ROLLERS

Unique design as we provide two seperate cylindrical finishing rollers one at the front side and another at the back side so better finishing is achieved.

AUGER ARRANGEMENT

Full length auger is provided at the front side for spreading extra concrete equally on the both the ends of the slab to achieve even surface.

DRIVE ROLLERS

Total four drive rollers are given where two rollers at each side is given with seperate drive for both the ends with provision of forward and reverse rotation so one can move the paver forward or reverse as per need.

PRIME MOVERS

Spreader auger

3 HP electrical geared motors

Cylinderical finishing rollers

5 HP x 2 nos ele. Geared motors

Drive rollers

3 HP x 2 nos ele. Geared motors

Total connected load (h.p)

19 HP

Suggested d.g. set

32 KVA

OPERATOR SITTING ARRANGEMENT

Adjustable seat with canopy provided at the top of the paver for the operator

CONTROL PANEL

Mounted on the top of the paver with internal cabling and with wired remote control to operate the paver.

MOBILITY

Four mechanical type swivel jacks with solid tyre provided for height adjustment and for moving the paver at the each end of structure.

OPTIONAL ACCESSORIES

  • Vibrating Needles
  • Fabricated Rails
